Maschinenfüße
4201 ARTICULATED STAND FEET
With Zinc plated bolt.
PA: Reinforced Polyamide.
* Max. Static load is calculated when the bolt is in vertical position.
Holes can be opened with a hammer to fasten the feet on the floor.
Diğer cıvata ölçüleri için iletişime geçiniz.
Optional: Black PVC'den yapılmış, kaymayan Rubber altlık aksesuar
olarak tedarik edilir (birlikte değildir).
Ø 102 mm Code No: 4250 01 100
Ø 124 mm Code No: 4250 01 120

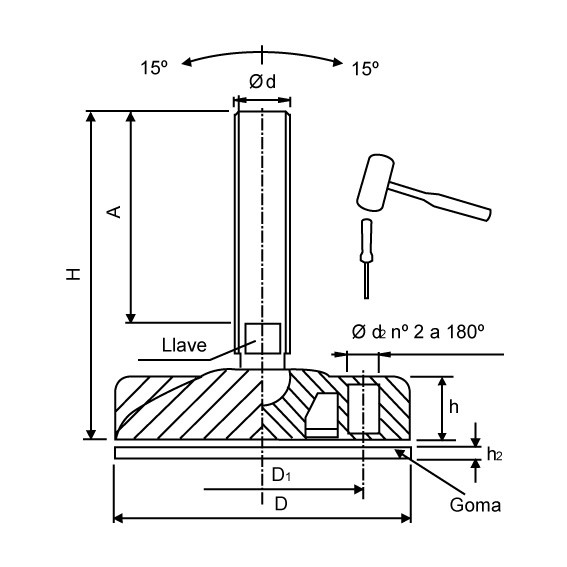

| Code No | D | D1 | h | d | A | H | d2 | Key | h2 | Kg* | Colour |
| 420110530 | 102 | 74 | 18 | M16 | 90 | 130 | 10.5 | 13 | 3 | 2200 | Black |
| 420110531 | 102 | 74 | 18 | M16 | 125 | 165 | 10.5 | 13 | 3 | 2200 | Black |
| 420110532 | 102 | 74 | 18 | M16 | 165 | 205 | 10.5 | 13 | 3 | 2200 | Black |
| 420110533 | 102 | 74 | 18 | M20 | 116 | 160 | 10.5 | 17 | 3 | 2400 | Black |
| 420110534 | 102 | 74 | 18 | M20 | 206 | 250 | 10.5 | 17 | 3 | 2400 | Black |
| 420112530 | 124 | 94 | 24 | M16 | 90 | 134 | 10.5 | 13 | 3 | 2500 | Black |
| 420112531 | 124 | 94 | 24 | M16 | 125 | 169 | 10.5 | 13 | 3 | 2500 | Black |
| 420112532 | 124 | 94 | 24 | M16 | 165 | 209 | 10.5 | 13 | 3 | 2500 | Black |
| 420112533 | 124 | 94 | 24 | M20 | 116 | 164 | 10.5 | 17 | 3 | 2700 | Black |
| 420112534 | 124 | 94 | 24 | M20 | 206 | 254 | 10.5 | 17 | 3 | 2700 | Black |
