Heavy Duty Series

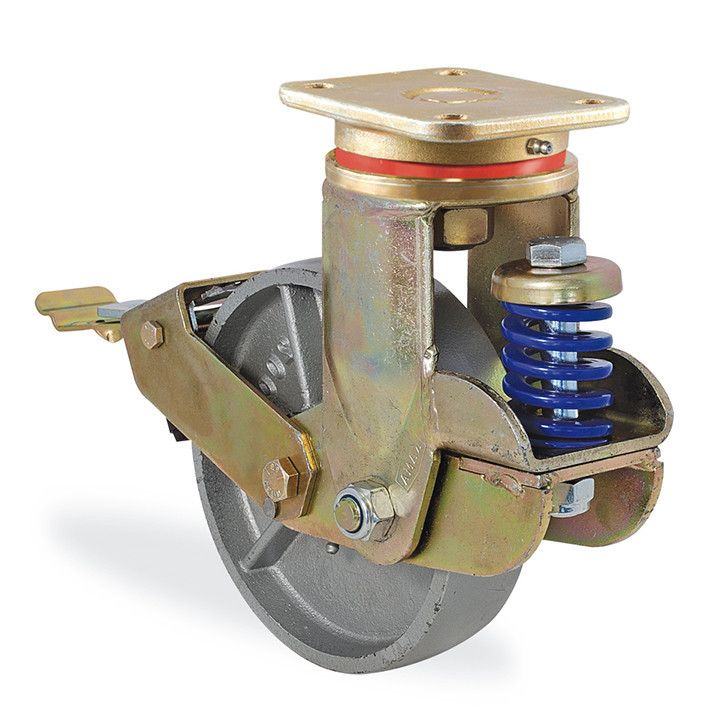

AD4302 DDR 125 F04 K

VERTICAL SPRING LOADED, SWIVEL PLATE CONNECTED, YELLOW PACIFIED GALVANIZED, WITH BRAKE SYSTEM LOCKING ONLY WHEEL FORK

CAST IRON RIM, CAST IRON TREAD, WITH BALL BEARING WHEEL

RED SPRING
Images are representative.
Product images may vary depending on diameters.

AD4302 DDR 125 F04 K
AD4302 DDR 125 F04 K
TECHNICAL INFORMATION
WD
mm125
WW
mm40
EK
mm65
BD
mm257
TE
mm140x115
TDA
mm105x80
DTDC
mm15.5x13
CC
kg500
OGK
kg80
H2TH
mm189.5
H1TH
mm172.5
LYK
mm17
YSK
kg450
